CWTD Episode #77

Portable Antennas
Excellent ways to get on the air while in the field ... and at home!

Podcast

---

1)  Portable QRP Antennas

Portable hamming is a popular activity particularly during Spring, Summer and Fall



Different types dictate antenna used

- Short impromptu outings need quick up skywires



- Camping, SOTA and IOTA ops or events can be more elaborate

Types of portable antennas



    Random length wire

- Non-resonant wires thrown over convenient tree or ??

- Example is 24 to 30 foot wire and similar ground counterpoise

- Quick to put up/take down

- OK for casual operation

- Needs tuner



     W1PID is great enthusiast ... < http://www.w1pid.com/>

- Somewhat unpredictable results

- Variant is EARCHI 6_40 antenna

                http://earchi.org/92011endfedfiles/Endfed6_40.pdf

                easy to duplicate, uses 30 ft wire and coax for counterpoise

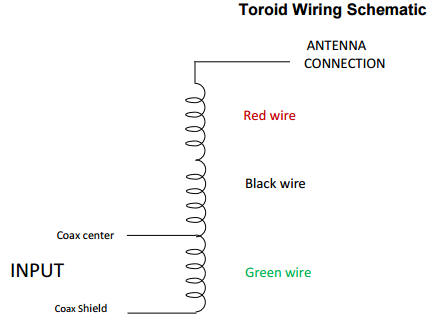

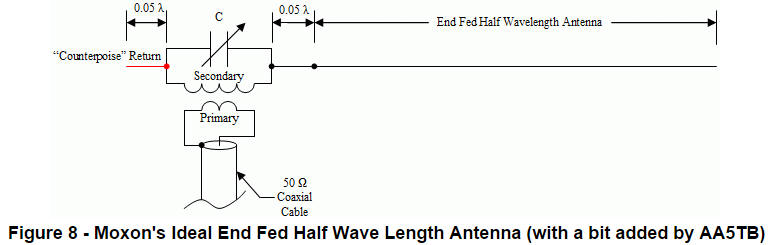

 The End Fed Half Wave Antenna

- L(ft) = 468/F(MHz)

- Also works on harmonics



A number of proponents ...



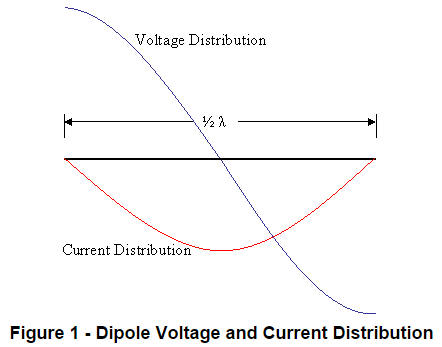

 Steve Yates AA5TB ...< http://www.aa5tb.com/efha.html>







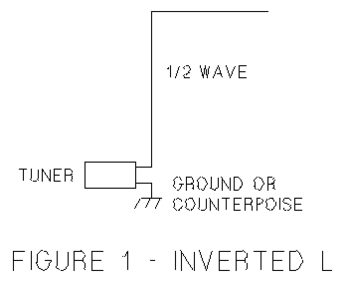

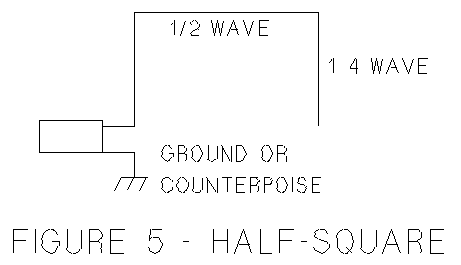

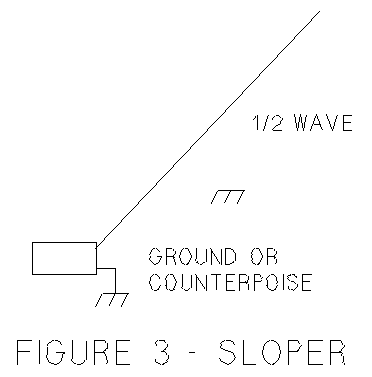

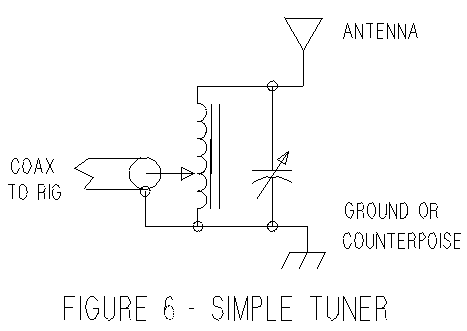

    N2CX Halfer ... < http://www.njqrp.org/n2cxantennas/halfer/index.html>









-Performance approaches center fed resonant dipole

-Requires tuner or matching device



Commercially available



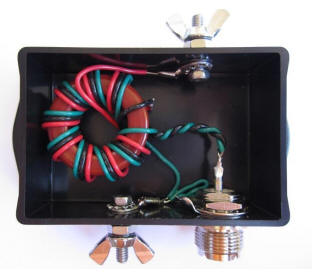

   Par EndFedZ ...< http://www.lnrprecision.com/endfedz/>

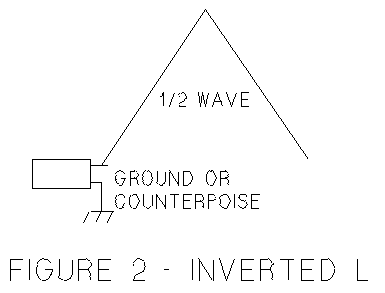

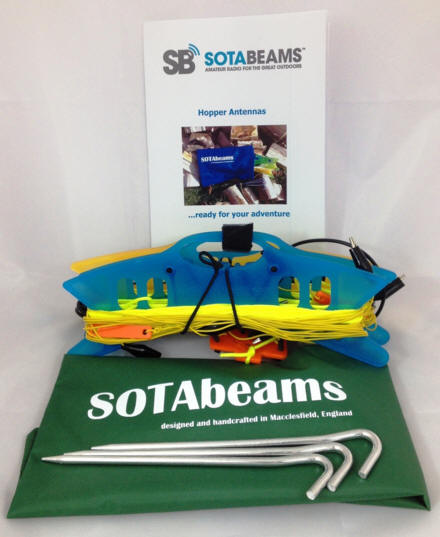

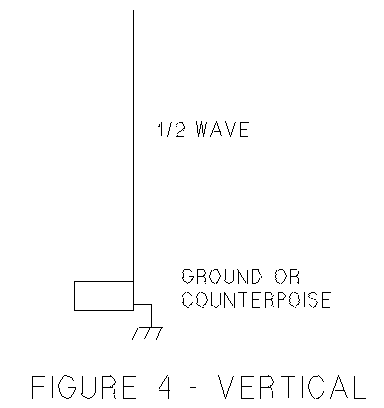

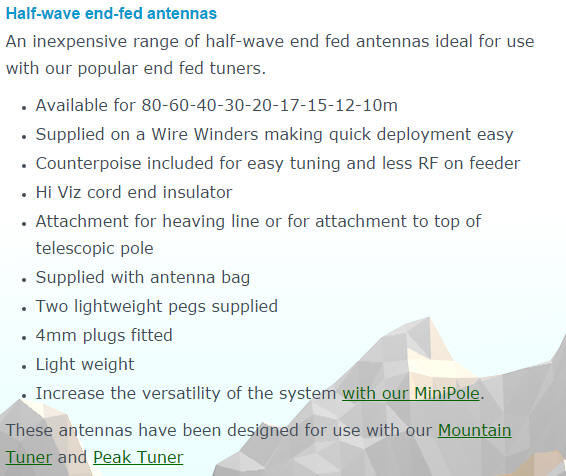

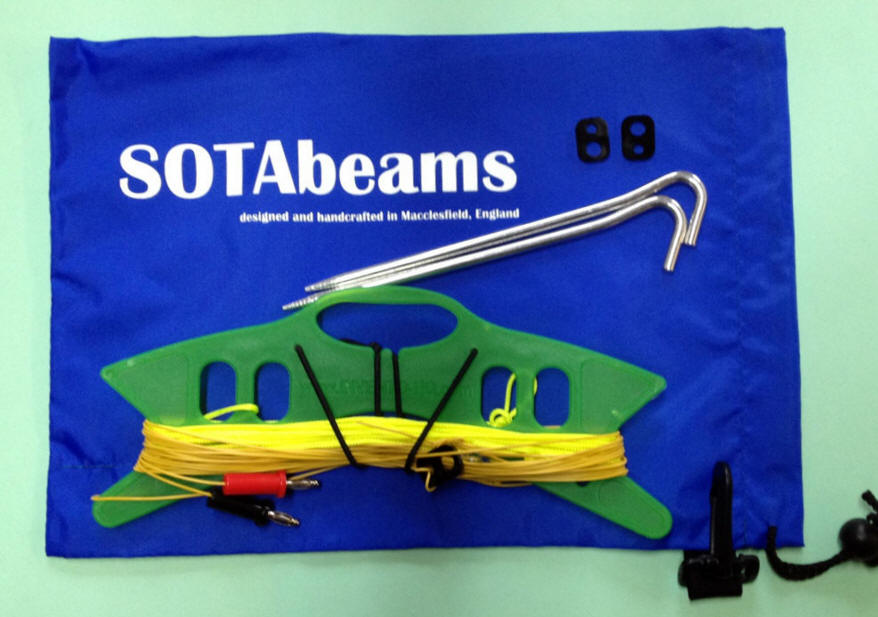

SOTAbeams .... < http://www.sotabeams.co.uk/half-wave-end-fed-antennas/>







Vertical antennas

- Inefficient if too short

- Requires substantial ground system

- Commercially available

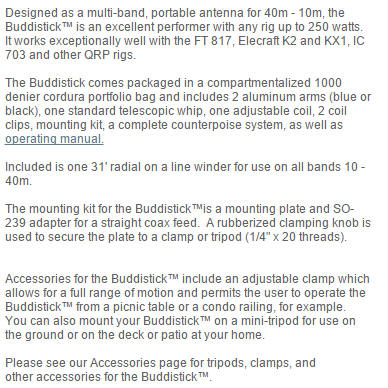

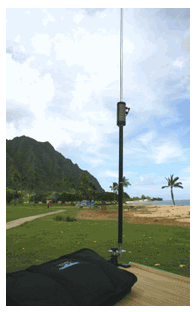

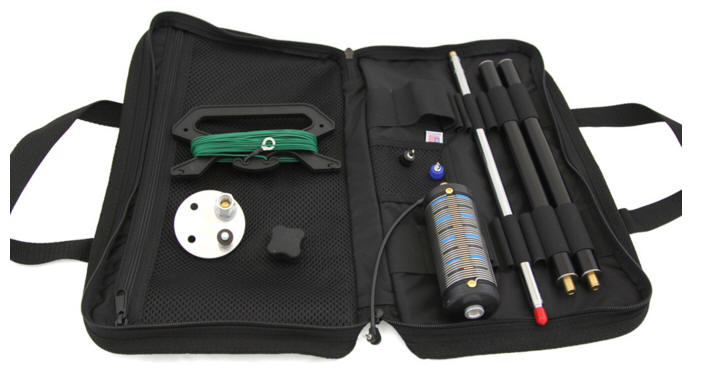

The Buddistik ...< http://www.buddipole.com/buddistick.html>

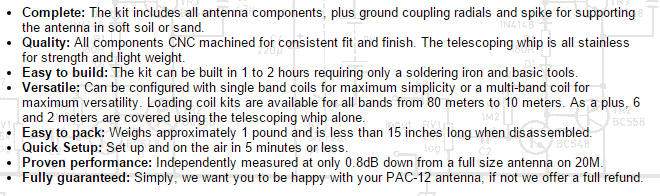

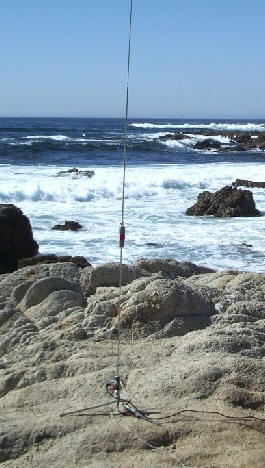

QRP Kits ... < http://www.qrpkits.com/pac12.html>





-Full size verticals are cumbersome for casual portable use



 Magnetic loops



-Convenient for limited space or crowded public areas



-Many SOTA ops like portability and band-hopping characteristics



-Common 3 foot loops

    -Convenient size

    -Fast, easy setup

    -Mount on camera tripod

    -Inefficient on 40 meters, good on 20 and higher

    -Narrowband – needs retuning for QSY



-Commercially available from ham distributors



Alex Loop ...< http://www.alexloop.com/instructions2.html>

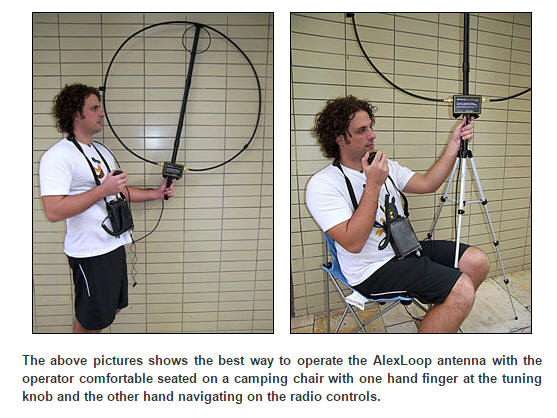

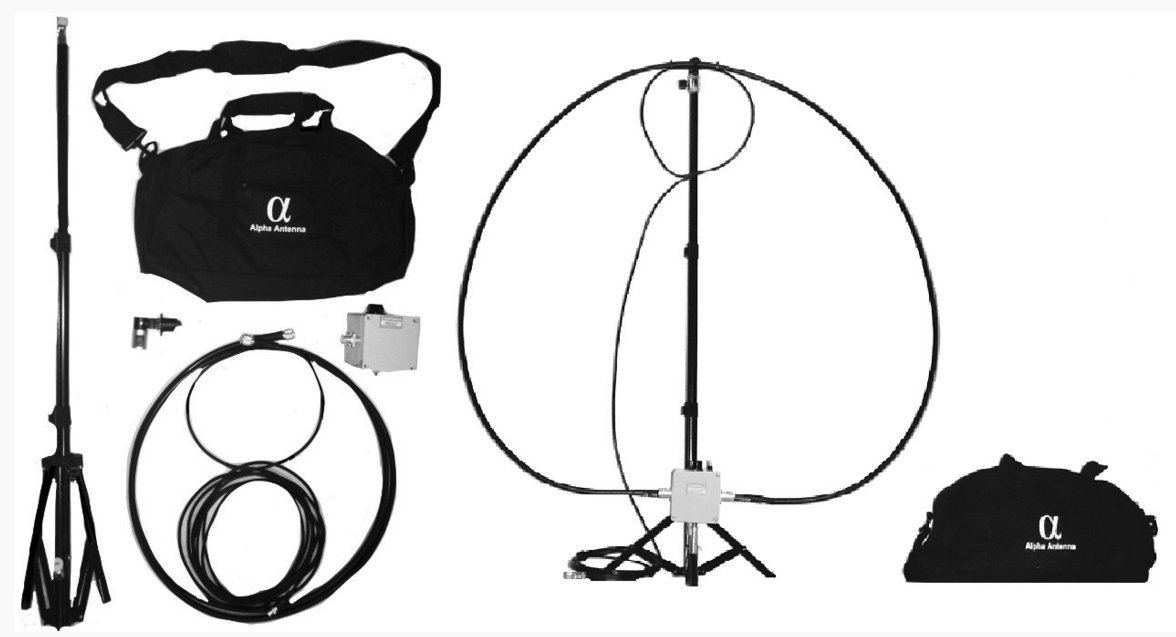

Alpha Antennas ... < http://www.alphaantenna.com/>





Dipoles and doublets



-Center fed half wave dipole



-Dependable, repeatable performance, particularly with balun



-Somewhat more effort than end fed wires

    - but not much if inverted vee configuration

    - Center at least 20 ft up, ends above head level



-Can be mulitbanded

    -Leapfrog segmented dipole

    -40/20/15 tri-bander

        -Doublet uses open wire line for multibanding



Dipoles commercially available

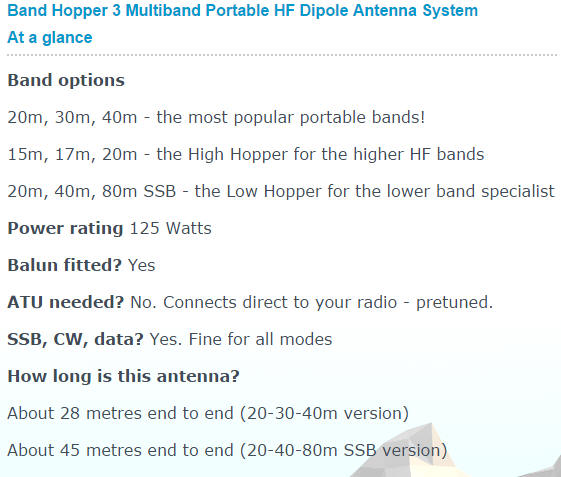

SOTA BEAMS ... http://www.sotabeams.co.uk/antennas-hf/





“Fixed mobile” operation



-Use ordinary HF mobile antenna on vehicle



    -Extra ground system helps effectiveness



    -Good when no antenna supports



    -Convenient for inclement weather



    -Superb for spur of the moment operation

        -While wife is shopping at the mall

        -While vacationing and can’t set up portable station



N2CX mobile operations ...

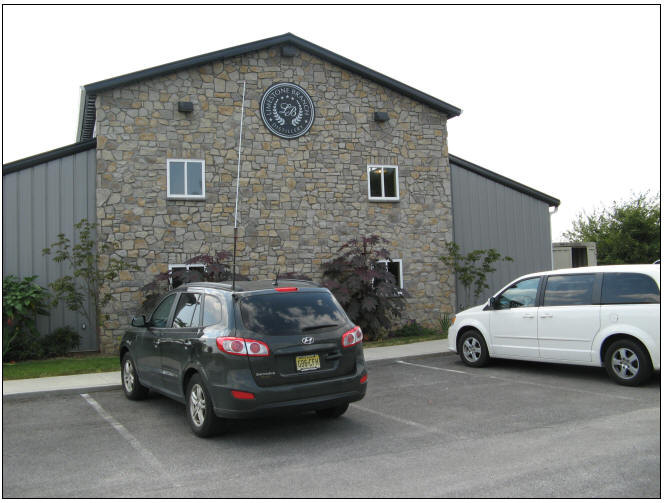

                 N2CX vehicle parked at Whitestone Brewing Company ... not QRV after this stop!

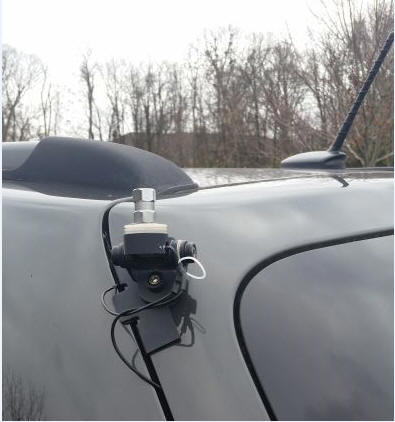

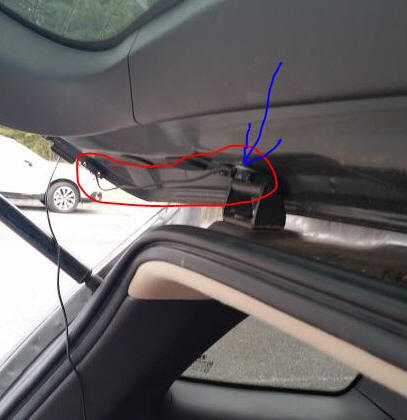

               K400 mounted on edge-lip of rear hatch                           Ground wire brought to bolt to ensure solid ground to vehicle



Is my antenna working?

• Use Reverse Beacon Network to check it out www.reversebeacon.net
• "Skimmers" monitor CW portions of ham bands
• They log signals received and post on web page
• The see CQ’s and TEST signals
• E.g. "TEST TEST de N2CX N2CX K"
• Screenshot from N2CX home antenna with 3W



• Handy check but…

- Depends on propagation, antenna pattern, available skimmers, QRM

- Less than 10 dB SNR – weak signal

- 10 dB to 20 dB – reasonable signal

- Above 20 dB SNR – you’re golden!



---
